TECHNICAL DATA
| Power supply |
AC 100-305V, 50-60Hz; SELV IP66 driver with SPD against current pulses up to 10kA |
| Power factor |
>0,95 |
| Lifespan |
100,000h (L80B20; Ta 25°) |
| Working ambient |
-20°C ~ +50°C; umidity 10-90% |
| Light source |
32 Cree LEDs |
| Color temperature |
3,000K (BC); 4,000K (NW); 6,000K (CW) |
| Optic system | Modular polycarbonate lenses with 4mm super-clear float tempered glass |
| Body lamp |
Monoblock heatsink in extruded aluminum anodized 20µm resistant to salt spray; polyamide heads with 30% self-extinguishing V0 glass fiber, red color (RAL 3013); vent plug with PTFE membrane and silicone gaske |
| Installation | 1) Suspended (standard) 2) Wall, ceiling or conduit through galvanized steel bracket with integrated goniometer (optional) 3) On pole top or on arm Ø60mm (optional) |
| Optional |
1) 1-10Vdc dimming 2) DALI power supply 3) Bluetooth module for lamp management via smartphone application 4) Anti-glare prismatic glass 4) Anti-glare opal glass |
| Waranty | 7 years |
PERFORMANCE
| Model | Consumption | Current | Light emission |
Luminous efficiency |
| LI-BRW-60 | 60W | 700mA | 9,300lm (4,000K) | 155lm/W |
| LI-BRW-80 | 80W | 900mA | 12,000lm (4,000K) | 150lm/W |
| LI-BRW-95 | 95W | 1,050mA | 13,775lm (4,000K) | 145lm/W |
| LI-BRW-115 | 115W | 1,250mA | 16,100lm (4,000K) | 140lm/W |
- Applications: warehouses, production plants, shopping centers, gyms, swimming pools, tensile structures…
- Always uniform light distribution thanks to the four different beam angles, to which is added the possibility of having a screen with anti-glare opal glass and UGR<22.
- Extruded aluminum heatsink with high dissipating profile to guarantee maximum thermal conductivity and a temperature to the touch not exceeding 50°C.
- External power supply with quick-fit connectors for immediate replacement in case of maintenance; also available in dimmable version or compatible with DALI protocol.
- Extremely compact dimensions and weight, ideal for installation even on tensile structures.
STANDARD RESPECTED*
- EN 55015:2006 + A1:2007 + A2:2009
- EN 60598-2-1:1989
- EN 60598-1:2008 + A11:2009
- EN 61000-3-2:2006 + A1:2009 + A2:2009
- EN 61000-3-3:2008
- EN 61547:2009
- EN 62471:2008
PHOTOBIOLOGICAL SECURITY
GR1 (no risk under normal conditions of use)
* For further details, consult the declaration of conformity document.

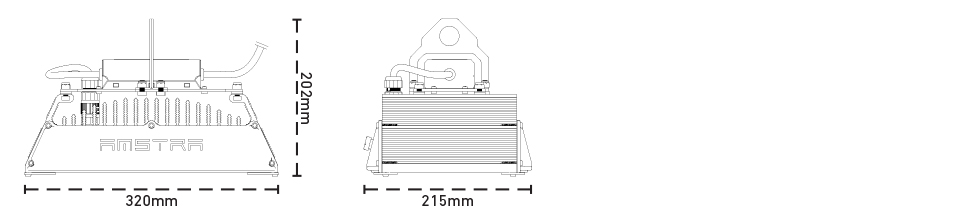

WEIGHT AND DIMENSIONS
5,8kg
6,1kg
BEAM ANGLES
SYMM. 60°
SYMM. 120°
ASYMM. 17×54°
ASYMM. 27×116°
ASYMM. 46×118°
