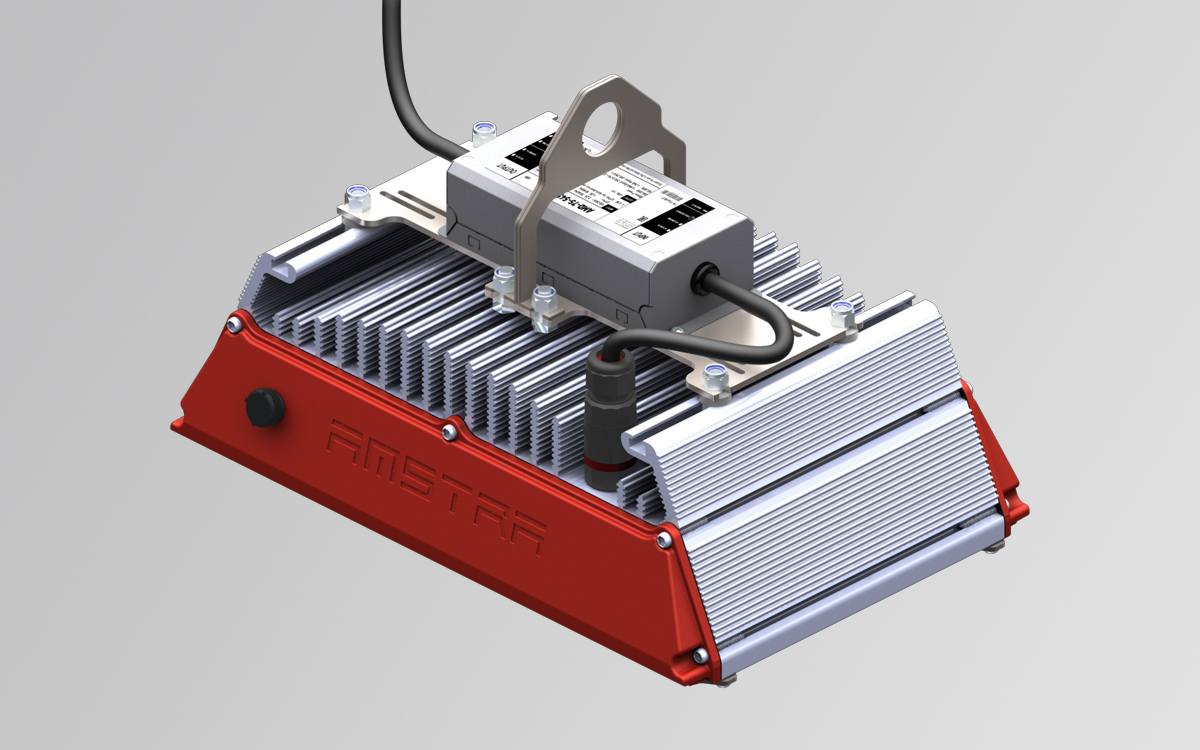

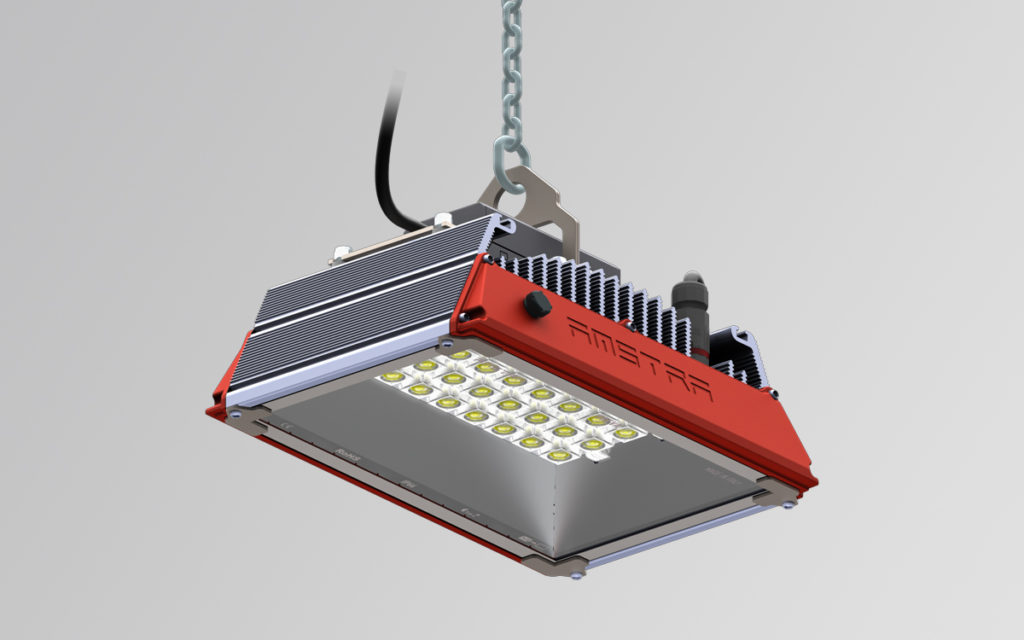

Breva Work 2M
LED INDUSTRIAL LAMP

TECHNICAL DATA

Power supply
AC 100-305V, 50-60Hz; SELV IP66 driver with SPD against current pulses up to 10kA
Power factor
>0,95
Lifespan
100,000h (L80B20; Ta 25°)
Working ambient
-20°C ~ +50°C; umidity 10-90%
Light source
32 Cree LEDs
Color temperature
3,000K (BC); 4,000K (NW); 6,000K (CW)
Optic system Modular polycarbonate lenses with 4mm super-clear float tempered glass
Body lamp
Monoblock heatsink in extruded aluminum anodized 20µm resistant to salt spray; polyamide heads with 30% self-extinguishing V0 glass fiber, red color (RAL 3013); vent plug with PTFE membrane and silicone gaske
Installation 1) Suspended (standard)
2) Wall, ceiling or conduit through galvanized steel bracket with integrated goniometer (optional)
3) On pole top or on arm Ø60mm (optional)
Optional
1) 1-10Vdc dimming
2) DALI power supply
3) Bluetooth module for lamp management via smartphone application
4) Anti-glare prismatic glass
4) Anti-glare opal glass
Waranty 7 years

PERFORMANCE

Model Consumption Current Light emission
Luminous efficiency
LI-BRW-60 60W 700mA 9,300lm (4,000K) 155lm/W
LI-BRW-80 80W 900mA 12,000lm (4,000K) 150lm/W
LI-BRW-95 95W 1,050mA 13,775lm (4,000K) 145lm/W
LI-BRW-115 115W 1,250mA 16,100lm (4,000K) 140lm/W
  • Applications: warehouses, production plants, shopping centers, gyms, swimming pools, tensile structures…
  • Always uniform light distribution thanks to the four different beam angles, to which is added the possibility of having a screen with anti-glare opal glass and UGR<22.
  • Extruded aluminum heatsink with high dissipating profile to guarantee maximum thermal conductivity and a temperature to the touch not exceeding 50°C.
  • External power supply with quick-fit connectors for immediate replacement in case of maintenance; also available in dimmable version or compatible with DALI protocol.
  • Extremely compact dimensions and weight, ideal for installation even on tensile structures.

STANDARD RESPECTED*

  1. EN 55015:2006 + A1:2007 + A2:2009
  2. EN 60598-2-1:1989
  3. EN 60598-1:2008 + A11:2009
  4. EN 61000-3-2:2006 + A1:2009 + A2:2009
  5. EN 61000-3-3:2008
  6. EN 61547:2009
  7. EN 62471:2008

PHOTOBIOLOGICAL SECURITY

GR1 (no risk under normal conditions of use)

* For further details, consult the declaration of conformity document.

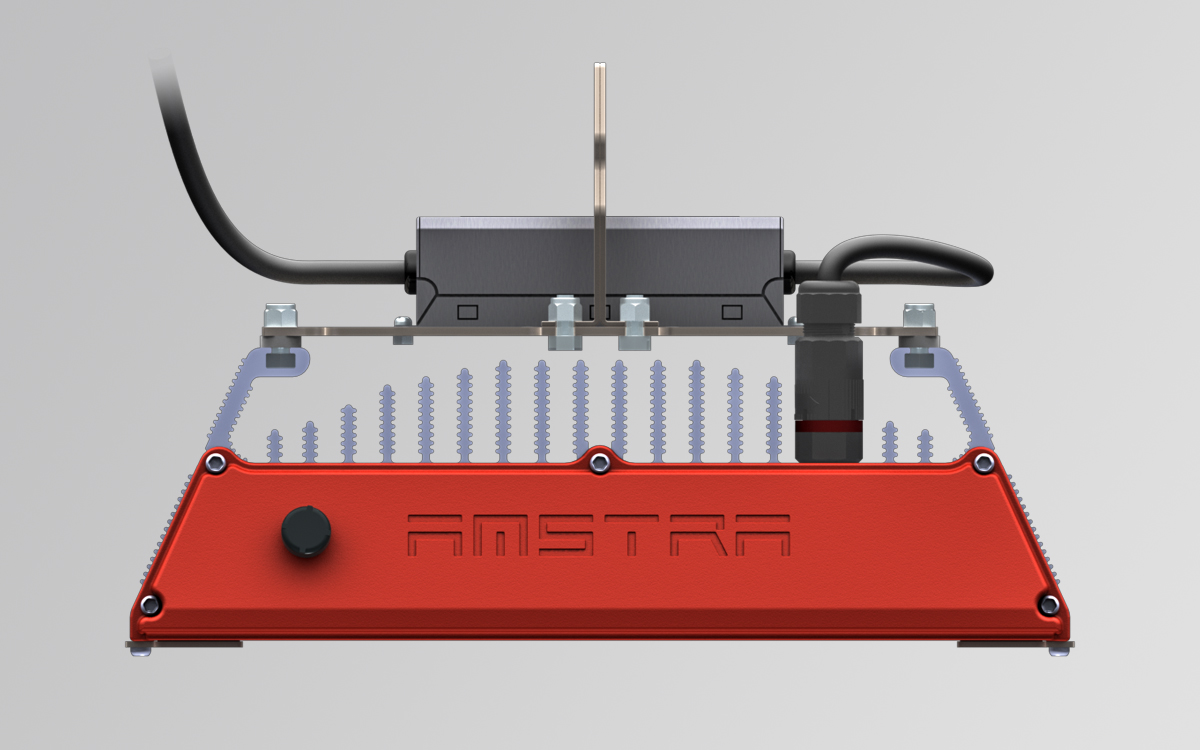

WEIGHT AND DIMENSIONS

5,8kg

6,1kg

BEAM ANGLES

SYMM. 60°

Ottica 60°

SYMM. 120°

Ottica 120°

ASYMM. 17×54°

Ottica 17x54°

ASYMM. 27×116°

Ottica 27x116°

ASYMM. 46×118°

Ottica 46x118°
Logo CE Logo RoHS Logo Made in Italy
